Mica Band Heater - MHT

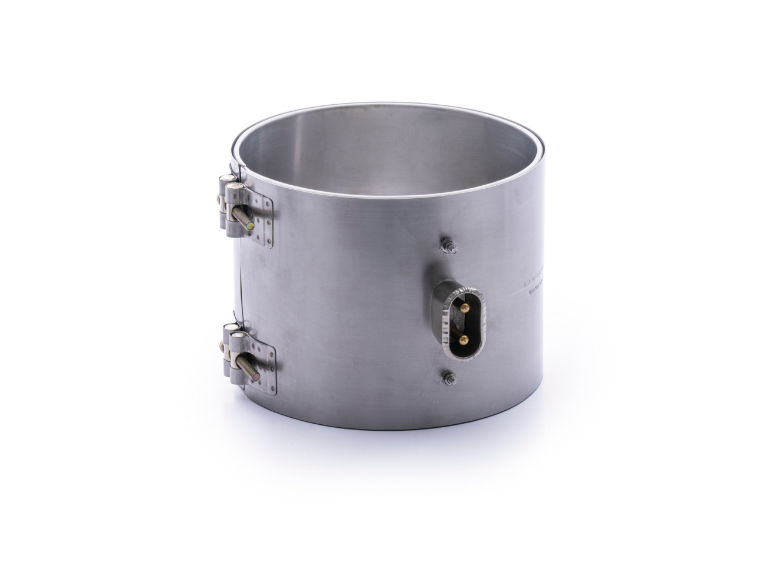

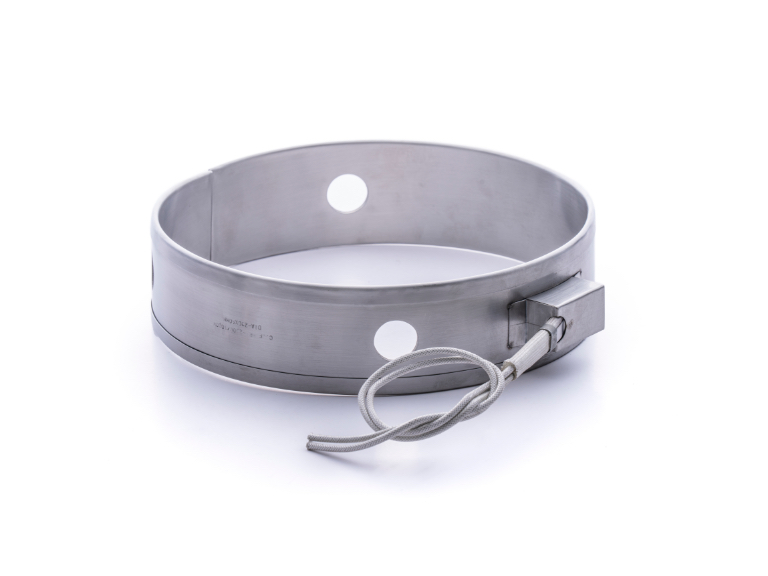

Mica Band heaters are constructed with a mica core wound with wire, the core is then bent into a circle shape. Mica Band Heaters can be installed directly onto barrel heaters without the requirement of initial heater removal. This type of heater can also be made in the “Segment Configuration” that allows the connection of various modular units n order for the band to fit larger diameters.

• Supply voltage: from 24V to 480V
• Power: from 200W to 6000W
• External diameter: min.100mm (3,93in) to 500mm (19,68in)
• Material: Mica Sheet, Nickel Chromium Resistance Strip, Electrogalvanized metal sheet, SS-304
• Available Terminals: M4,M5, lead wire
• Available Accessories: Projected Plug, Cover, Ceramic connector
• Notes: Electrical ratings and dimension can be customized as per client requirements after a feasibility check
