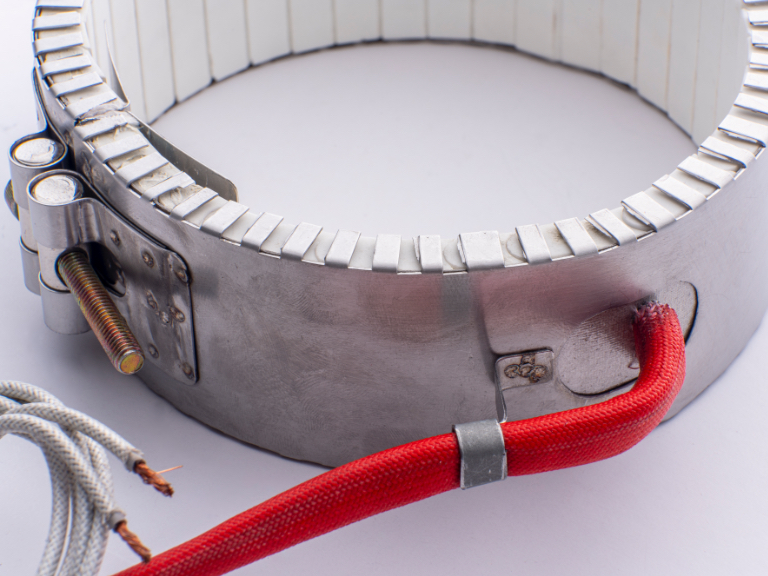

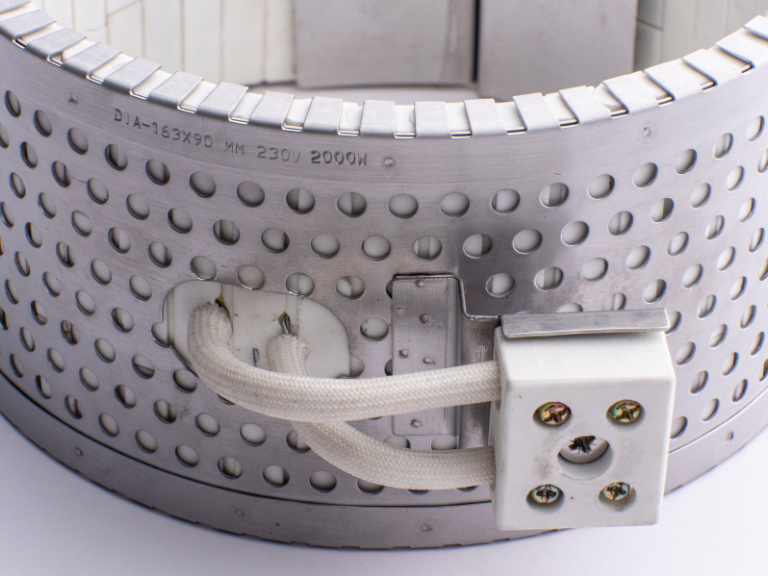

Ceramic Band Heater - MHT

Band Heaters are commonly used whenever heat is needed around the surface area of a pipe, tube or cylindrical vessel. Ceramic Band Heaters transmit heat through both conduction and radiation, are fully flexible and can accommodate holes and cut-outs. This type of heater can also be made in the “Segment configuration” that allows the connection of various modular units in order for the band to fit larger diameters.

• Supply voltage: from 220V to 400V
• Power: from 500W to 10000W
• External diameter: min. 100mm (3,93in) to 500mm (19,68in)
• Material: High Tempeature Ceramic Beeds, Nickel Chromium Resistance Strip, Electrogalvanized metal sheet, SS-304
• Available Terminals: M4,M5, lead wire
• Available Accessories: Projected Plug, Stud Type with Cover, Direct Lead wire with Cover
• Notes: Electrical ratings and dimension can be customized as per client requirements after a feasibility check
